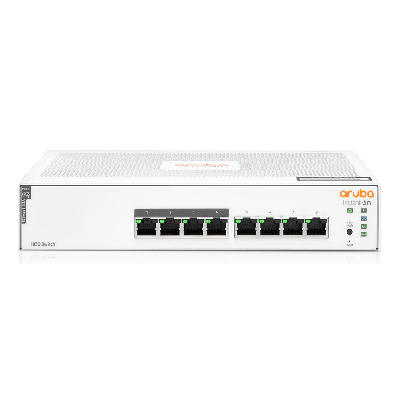

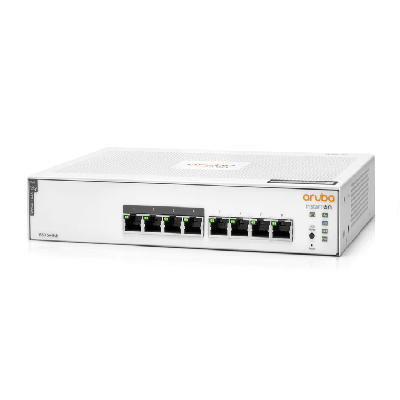

ARUBA / 1830 / JL811A / 8 PORT GIGABIT (4 POE – 65 WATTS) SMART MANAGED SWITCH

• Smart-managed Layer 2 Ethernet switch series ready to deploy in 8, 24-, and 48-port for non-PoE and PoE models.
• Compact and fan-less 8-port PoE/ non-PoE models and 24-port non-PoE model for acoustically sensitive environments.
• Aruba Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
• Two (2) and four (4) dedicated 1G SFP fiber ports on 24- and 48-port models respectively to eliminate traffic bottlenecks across your network.
• Option to manage your switches through local web GUI.
• Cost-effective PoE Support: With half of the ports capable of supporting PoE, these switches are ideal for the most cost-efficient environments.

DifferentiatorEntry-level, smart-managed, Gigabit Layer 2 switches. Easy-to-deploy, secure and affordable switches, designed for small businesses looking for cost-effective solution with evolving networking demands. Using the Instant On mobile app or the cloud-based web portal, quickly setup, monitor and manage the 1830 switches. Can also manage the device through the local web GUI. This model has 8 10/100/1000 RJ-45 ports and provides 65 W of Class 4 PoE power.

Power consumptionMaximum: 100-127V: 86.07W 200-220V: 83.67W; Idle: 100-127V: 8.3W 200-220V: 8.2W

Input voltage100 – 240 VAC

Ports8 RJ-45 10/100/1000 Class 4 PoE ports

Switching capacity16 Gbps

Throughput11.90 Mpps

Memory and processorARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB

PoE capability65W

Operating Temperature0-40°C, 0-10,000 ft

Management featuresAruba Instant On Cloud; Web browser; SNMP Manager

WarrantyLimited Lifetime Warranty with 24×7 phone support for 90 days and chat support for the entire warranty duration.

Weight3.40 lb

Weight1.54 kg

Minimum dimensions ( H x W x D)7.68 x 9.65 x 1.73 in

Minimum dimensions ( H x W x D)19.51 x 24.51 x 4.39 cm
