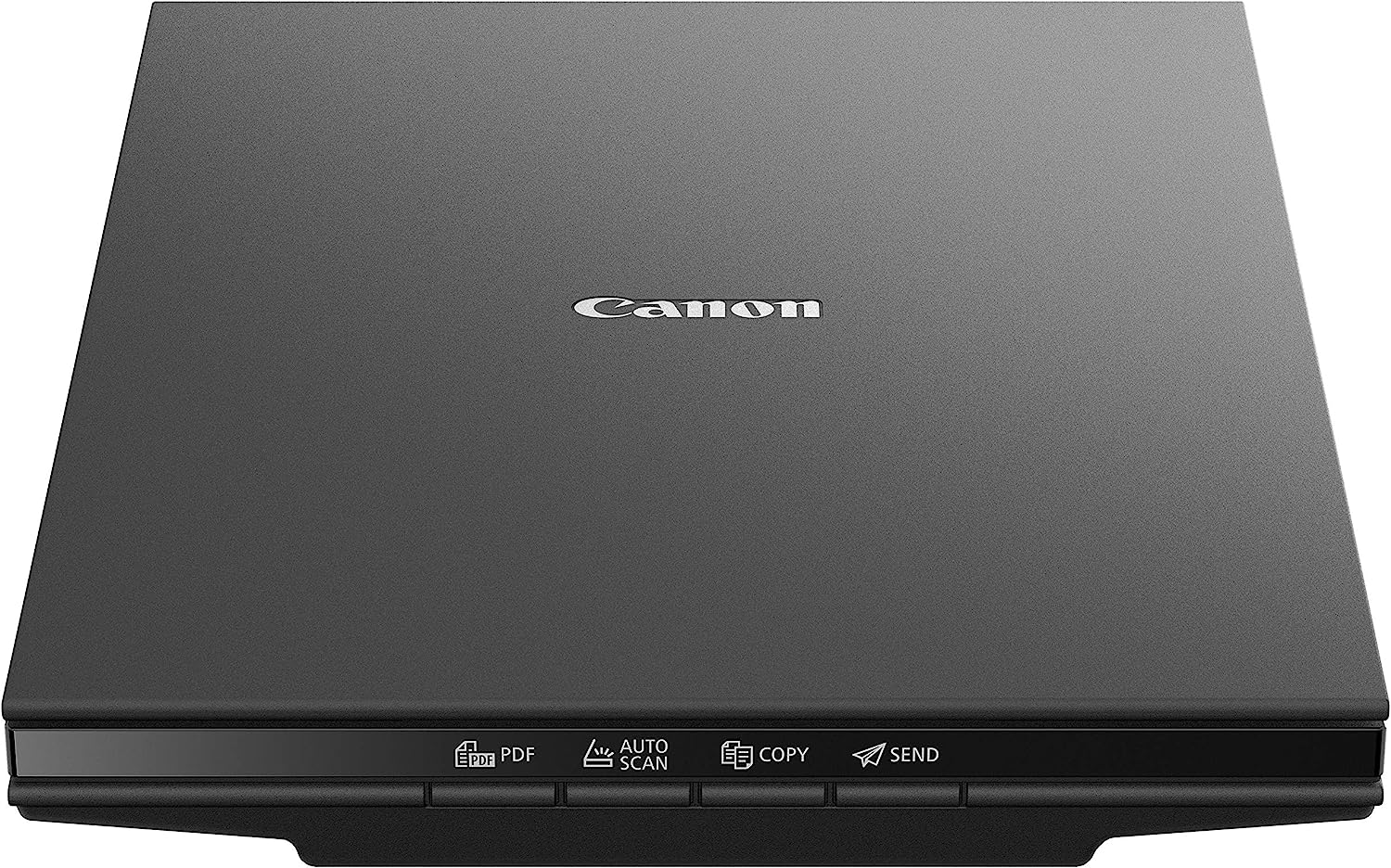

Canon Scan LiDE 300

Canon Scan LiDE 300

Product Specifications:

Scanner type Flatbed

Sensor type CIS

Light source 3-color (RGB) LED

Optical resolution *1 2400 x 2400 dpi

Selectable resolution 25 – 19200 dpi (Scan Gear)

Scanning bit depth
Color: 48 bit input (16 bit input for each color (RGB))/
Windows: 48 bit or 24 bit output (16 bit or 8 bit output for each color (RGB)) 2
Mac: 24 bit output (8 bit output for each color (RGB))

Grayscale: 16 bit input or 8 bit output

Interface USB2.0 High-Speed Mini-B 3 4

Maximum document size  A4/Letter (8.5″ x 11.7″/216 x 297 mm)

Scanner buttons  4 buttons (PDF, AUTO SCAN, COPY, SEND)

Operating environment Temperature: 41 to 95 °F (5 to 35 °C)

Humidity 10 – 90 % RH (no condensation)

Power supply Supplied via USB port (No external adapter required)

Power consumption In operation (max.): Approx. 4.5 W

Stand-by Approx. 0.3 W *5

External dimensions Approx. 9.9 (W) x 14.5 (D) x 1.7 (H) inches (250 x 367 x 42 mm)

Weight  Approx. 3.6 lbs (1.7 kg)

Optical resolution

1. Optical resolution represents the maximum sampling rate based on ISO 14473.
2. The 48-bit output is supported only when using the TWAIN driver for Windows.
3. The scanner is designed to produce optimal results when connected to a USB 3.0 or higher port with the supplied USB cable. Connect the USB cable supplied with the scanner to a USB 3.0 or higher port. (The supplied USB cable is for the scanner only.) It cannot be used for other devices.
4. To use Hi-Speed USB, the computer must support Hi-Speed USB.
   Additionally, the Hi-Speed USB interface is completely backward compatible with USB 1.1, so the connection is possible even if the computer interface is USB 1.1.
5. USB connections to PC.

Minimum System Requirements

Conform to the operating system’s requirements when higher than those given here.

Windows Operating system

Windows 10, Windows 8.1, Windows 7 SP1
Note: Computer with Windows 7 or later pre-installed
Hard disk space 3.0 GB
Note: For bundled software installation.
The necessary amount of hard disk space may be changed without notice.
Display XGA 1024 x 768

macOS

Operating system OS X 10.11, macOS 10.12 to macOS 10.13
Hard disk space 1.5 GB
Note: For bundled software installation.
The necessary amount of hard disk space may be changed without notice.
Display XGA 1024 x 768
