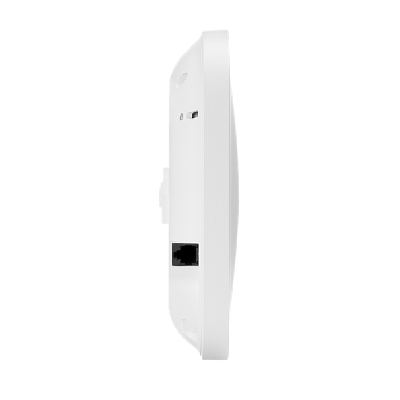

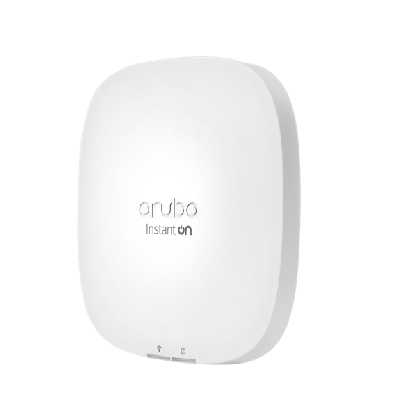

Aruba Instant On AP22 Indoor Access Points deliver affordable, business-grade 802.11ax Wi-Fi for high performance, high density small business environments. Business-grade capabilities are designed to meet the growing number of mobile, IoT, and security needs.

• Wi-Fi 6 for high performance and efficiency.
• Supports up to 75 associated clients per radio.
• Support for WPA2/WPA3 protected employee and guest login with Enhanced Open for per user guest access.

CertificationsEN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments)
Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3

Input voltagePower over Ethernet (POE): 802.3af (class 3)
DC power (12V)
Note: Power sources are sold separately

Wi-Fi antennaIntegrated down-tilt omni-directional antennas for 2×2 MIMO with peak antenna gain of 4.3dBi in 2.4GHz and 5.6dBi in 5GHz (of the effective, combined pattern for both antennas in each band).

Connectivity, standardIEEE 802.11ax

Ports(1) uplink Gigabit Ethernet port, with POE-in support (802.3af)

MountingThe access point ships with a white mount clip that can attach to both wall and ceiling.
You can also purchase a mount (R6P90A) that matches the aesthetic design and looks of the APs, to blend seamlessly into your environment.

Power consumptionMax power consumption (worst-case): 10.1W (PoE), 8.8W (DC)

Radio coverageDual Radio for simultaneous dual-band operation
5 GHz 802.11ax 2×2 MIMO for up to 1.2 Gbps wireless data rate, with Multi User MIMO support (Wi-Fi 6)
2.4 GHz 802.11ax 2×2 MIMO for up to 574 Mbps wireless data rate (Wi-Fi 6)

DifferentiatorAruba Instant On AP22 Indoor Access Points offer a reliable, affordable, and business-grade 802.11ax Wi-Fi experience for high performance, high-density small business environments like hotels, restaurants, and professional offices. Supporting Wi-Fi 6 standard, these access points have a peak data rate of 1.2 Gbps and scale up to 25 access points, without additional cost and complexity. Regulatory domain of Egypt.

Weight1.1 lb

Weight500 g

Minimum dimensions ( H x W x D)1.5 x 6.3 x 6.3 in

Minimum dimensions ( H x W x D)37x 160 x 160 mm
