iiyama ProLite TF1515MC-B2 Open Frame Interactive Display, 15″ XGA TN LED Display, Projective Capacitive Touch Technology, 10 Touch Points, 8ms (BtB) Response Time, Black | TF1515MC-B2

Description for iiyama ProLite TF1515MC-B2 Open Frame Interactive Display, 15″ XGA TN LED Display, Projective Capacitive Touch Technology, 10 Touch Points, 8ms (BtB) Response Time, Black | TF1515MC-B2

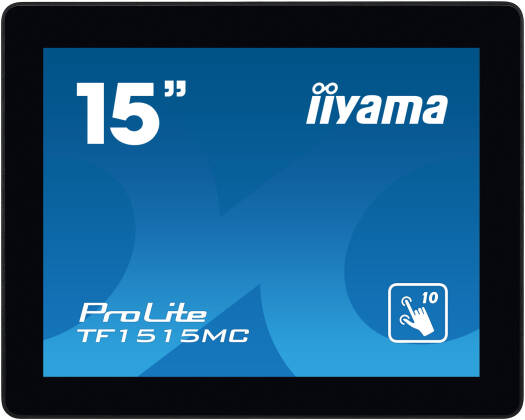

ProLite TF1515MC-B2 Open Frame PCAP 10 point touch screen equipped with touch through glass functionThe ProLite TF1515MC-B2 (15 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF1515MC-B2 can be equipped with optional external mounting brackets (OMK2-1) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.  Specifications

DISPLAY CHARACTERISTICS


Design
Open Frame

Diagonal
15″, 38cm

Panel
TN LED

Native resolution
1024 x 768 (0.8 megapixel)

Aspect ratio
4:3

Panel brightness
350 cd/m²

Brightness
315 cd/m² with touch

Light transmittance
90%

Static contrast
800:1 with touch

Response time (BTB)
8ms

Viewing zone
horizontal/vertical: 160°/150°, right/left: 80°/80°, up/down: 75°/75°

Colour support
16.2mln (6bit + Hi-FRC)

Horizontal Sync
31.4 – 60kHz

Viewable area W x H
304.1 x 228.1mm, 12 x 9″

Pixel pitch
0.297mm

Bezel colour and finish
black

TOUCH


Touch technology
projective capacitive

Touch points
10 (HID, only with supported OS)

Touch method
stylus, finger, glove (latex)

Touch interface
USB

Supported operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

Through-Glass
6mm

INTERFACES / CONNECTORS / CONTROLS


Analog signal input
VGA x1

Digital signal input
HDMI x1

DisplayPort
x1

Audio output
Mini jack x1

HDCP
yes

FEATURES


Extra
anti-fingerprint coating, touch through-glass, foam seal

Glass hardness
7H

60950 Ball drop test
yes

Water and dust protection
IP65 (front)

OSD key lock
yes

GENERAL


OSD languages
EN, DE, FR, ES, IT, CN, JP

Control buttons
menu, scroll up/brightness, scroll down/contrast, select, power

User controls
picture (contrast, brightness, H.position, V.position, H.size, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H.position, OSD V.position, touch switch), option (reset, language, source select, display mode, factory)

Plug&Play
DDC2B

MECHANICAL


Orientation
landscape, portrait, face-up

VESA mounting
100 x 100mm

Operation temperature range
0°C – 40°C

Storage temperature range
-20°C – 60°C

ACCESSORIES INCLUDED


Cables
power, USB, HDMI, DP

Guides
quick start guide, safety guide

Other
AC adapter, Touch Panel Driver Disk (CD-ROM), external control pad

Remote control
external control pad

POWER MANAGEMENT


Power supply unit
external

Power supply
DC 12 V

Power usage
16W typical, 1.2W stand by

SUSTAINABILITY


Regulations
CB, CE, EAC, RoHS support, ErP, WEEE, cULus, REACH

Energy efficiency class (Regulation (EU) 2017/1369)
E

REACH SVHC
above 0.1%: Lead

DIMENSIONS / WEIGHT


Product dimensions W x H x D
364 x 291 x 41.5mm

Box dimensions W x H x D
460 x 470 x 175mm

Pallet volume
44pcs

Pallet dimensions W x H x D
860 x 970 x 120mm

Weight (without box)
2.9kg

Weight (with box)
4.6kg

EAN code
4948570116751
