iiyama ProLite TF2215MC-B2 Open Frame Interactive Display, 22″ FHD IPS LED Display, Projective Capacitive Touch Technology, 10 Touch Points, 14ms (BtB) Response Time, Black | TF2215MC-B2

Description for iiyama ProLite TF2215MC-B2 Open Frame Interactive Display, 22″ FHD IPS LED Display, Projective Capacitive Touch Technology, 10 Touch Points, 14ms (BtB) Response Time, Black | TF2215MC-B2

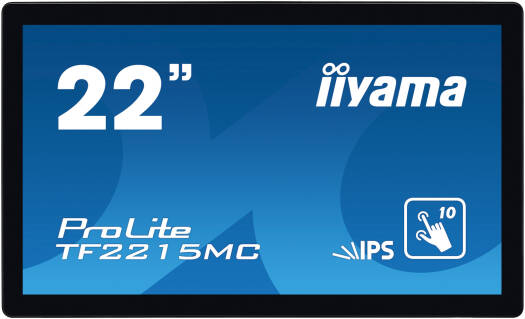

PROLITE TF2215MC-B2 10pt touch Open Frame monitor with IPS panel and touch through glass functionThe ProLite TF2215MC-B2 (21.5 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF2215MC-B2 can be equipped with optional external mounting brackets (OMK3-1) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.  Specifications

DISPLAY CHARACTERISTICS


Design
Open Frame

Diagonal
21.5″, 54.6cm

Panel
IPS LED

Native Resolution
1920 x 1080 (2.1 MP Full HD)

Aspect Ratio
16:9

Panel Brightness
350 cd/m²

Brightness (with touch)
315 cd/m²

Light Transmittance
90%

Static Contrast
1000:1

Response Time (BTB)
14ms

Viewing Angle
178°/178° horizontal/vertical, 89°/89° right/left, 89°/89° up/down

Horizontal Sync
31.4 – 82kHz

Viewable Area W x H
476.064 x 267.786mm, 18.7 x 10.5″

Pixel Pitch
0.24795mm

Bezel Colour and Finish
Black

TOUCH


Touch Technology
Projective capacitive

Touch Points
10 (HID, supported OS only)

Touch Method
Stylus, finger, glove (latex)

Touch Interface
USB

Supported Operating Systems
Windows, Linux (details in driver instruction file)

Through-Glass
6mm

INTERFACES / CONNECTORS / CONTROLS


Analog Signal Input
VGA x1

Digital Signal Input
HDMI x1, DisplayPort x1

Audio Output
Mini jack x1

HDCP
Yes

FEATURES


Extra
Anti-fingerprint coating, touch through-glass

Glass Hardness
7H

60950 Ball Drop Test
Yes

Water and Dust Protection
IP65 (front)

Water Tight Seal
Yes

OSD Key Lock
Yes

GENERAL


OSD Languages
EN, DE, FR, ES, IT, CN, JP

Control Buttons
Menu, Scroll up/Brightness, Scroll down/Contrast, Select, Power

User Controls
Picture, Advanced, OSD, Option

Plug & Play
DDC2B

MECHANICAL


Orientation
Landscape, portrait, face-up

VESA Mounting
100 x 100mm

Operation Temperature Range
0°C – 40°C

Storage Temperature Range
-20°C – 60°C

ACCESSORIES INCLUDED


Cables
Power, USB, HDMI, DP

Guides
Quick start guide, safety guide

Other
AC adapter, Touch Panel Driver Disk (CD-ROM), external control pad

POWER MANAGEMENT


Power Supply Unit
External

Power Supply
DC 12 V

Power Usage
20.8W typical, 1.05W standby, 0.32W off mode

SUSTAINABILITY


Regulations
CB, CE, RoHS, ErP, WEEE, CU, cULus, REACH

Energy Efficiency Class
F

REACH SVHC
Lead (above 0.1%)

DIMENSIONS / WEIGHT


Product Dimensions W x H x D
520 x 315 x 42.5mm

Weight (without box)
4.4kg

EAN Code
4948570116768
