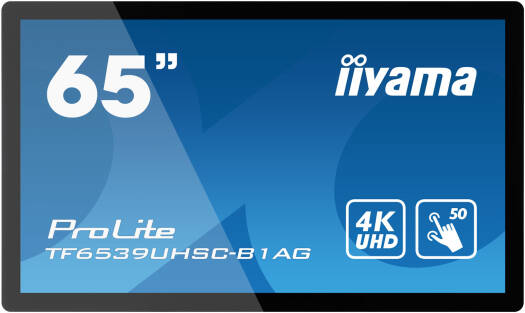

iiyama ProLite TF6539UHSC-B1AG Interactive Display, 65″ 4K UHD IPS LED Display, 60Hz Refresh Rate, 8ms (GtG) Response Time, Projective Capacitive, 6mm Through-Glass, Black | TF6539UHSC-B1AG

Description for iiyama ProLite TF6539UHSC-B1AG Interactive Display, 65″ 4K UHD IPS LED Display, 60Hz Refresh Rate, 8ms (GtG) Response Time, Projective Capacitive, 6mm Through-Glass, Black | TF6539UHSC-B1AG

ProLite TF6539UHSC-B1AG 65″ Open Frame PCAP interactive large format display with 50pt touch capability, IPS panel technology and touch through glass function for landscape, portrait or face up useThe 4K UHD (3840×2160) Open Frame TF6539UHSC-B1AG with Touch-Through-Glass function guarantees a seamless and accurate touch response for true kiosk integration or interactive behind-glass-retail applications. The IPS panel technology offers exceptional colour performance and wide viewing angles, making it a perfect solution for interactive shop windows, education, kiosks and in-store communications. Featuring a metal housing with 60950-1 ball-drop proof, scratch-resistant and edge-to-edge glass, this display can be installed in the most demanding environments for an 24/7 usage and in different set-ups as a result of its Open Frame side mounting holes. For ease of integration, the TF6539UHSC-B1AG can be equipped with optional external mounting brackets (OMK4-2) making it an ideal solution for kiosk integrators and interactive multimedia.  Specifications

DISPLAY CHARACTERISTICS

Design
Edge to edge glass, Open Frame

Diagonal
65″, 165cm

Panel
IPS LED, AG coated glass

Native resolution
3840 x 2160 @60Hz (8.3 megapixel 4K UHD)

Aspect ratio
16:9

Panel brightness
500 cd/m²

Light transmittance
84%

Static contrast
1100:1

Response time (GTG)
8ms

Viewing zone
Horizontal/vertical: 178°/178°, right/left: 0°/0°, up/down: 0°/0°

Colour support
16.7mln 8bit

Horizontal Sync
30 – 83kHz

Viewable area W x H
1430.9 x 806mm, 56.3 x 31.7″

Bezel width (sides, top, bottom)
36.3mm, 37.3mm, 37.3mm

Pixel pitch
0.372mm

Bezel colour and finish
Black, matte

TOUCH

Touch technology
Projective capacitive

Touch points
50 (HID, only with supported OS)

Touch accuracy
±3mm

Touch method
Stylus, finger, glove (latex)

Touch interface
USB

Supported operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

Through-Glass
6mm

Palm rejection
Yes

INTERFACES / CONNECTORS / CONTROLS

Analog signal input
VGA x1 (max. 1920×1200 @60Hz)

Digital signal input
HDMI x2 (v.2.0 x1 max. 3840×2160 @60Hz, v.1.4 x1 max. 3840×2160 @30Hz), DisplayPort x1 (v.1.2 max. 3840×2160 @60Hz)

Audio input
Mini jack x1

Monitor control input
RS-232c x1, RJ45 (LAN) x1

Audio output
Mini jack x1

Speakers
2 x 8W

HDCP
Yes

FEATURES

Extra
Handles, touch through-glass, temperature sensor with fan control

Max. non-stop operating time
24/7

Anti image retention
Yes

Glass thickness
5mm

Glass hardness
7H

60950 Ball drop test
Yes

Water and dust protection
IP54 (front)

Housing (bezel)
Metal

GENERAL

OSD languages
EN, DE, FR, ES, IT, RU, NL, PL

Control buttons
Power, menu, exit, up, down

User controls
Picture (picture mode, backlight, contrast, brightness, chroma, phase, sharpness, colour temp., reset), sound (treble, bass, balance, volume, mute, speaker, audio source, reset), screen (aspect, adjust screen, touch feature, touch switch), settings (language, schedule, power save, control setting, network setting, advanced, information, all reset)

Plug&Play
DDC2B

MECHANICAL

Orientation
Landscape, portrait, face-up

VESA mounting
600 x 400mm

Mini PC mount
VESA 100 x 100, NUC INTEL

Operation temperature range
0°C – 40°C

Storage temperature range
-20°C – %2°C

MTBF
50000 hours (excluding backlight)

ACCESSORIES INCLUDED

Cables
Power (1.8m), USB (1.8m), HDMI (1.8m), DP (1.8m)

Guides
Quick start guide, safety guide

Cable cover
Yes

POWER MANAGEMENT

Power supply unit
Internal

Power supply
AC 100 – 240V, V, /50Hz

Power usage
175W typical, 1.0W stand by, 0.5W off mode

SUSTAINABILITY

Regulations
CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA

Energy efficiency class (Regulation (EU) 2017/1369)
G

REACH SVHC
Above 0.1%: Lead

DIMENSIONS / WEIGHT

Product dimensions W x H x D
1503.5 x 880.5 x 67mm

Box dimensions W x H x D
1670 x 1020 x 310mm

Pallet volume
8pcs

Pallet dimensions W x H x D
1690 x 2292 x 1260mm

Weight (without box)
56kg

Weight (with box)
65kg

EAN code
4948570118083
