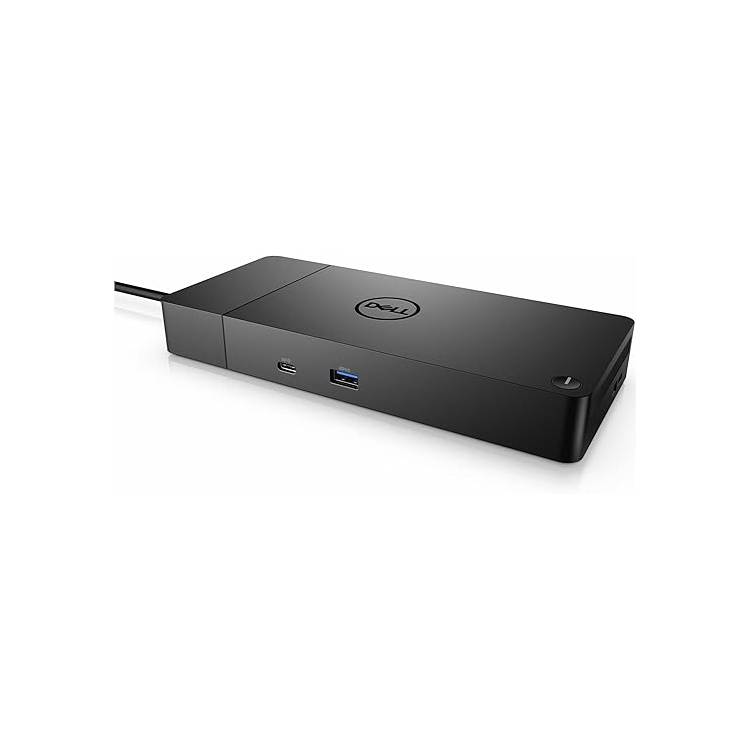

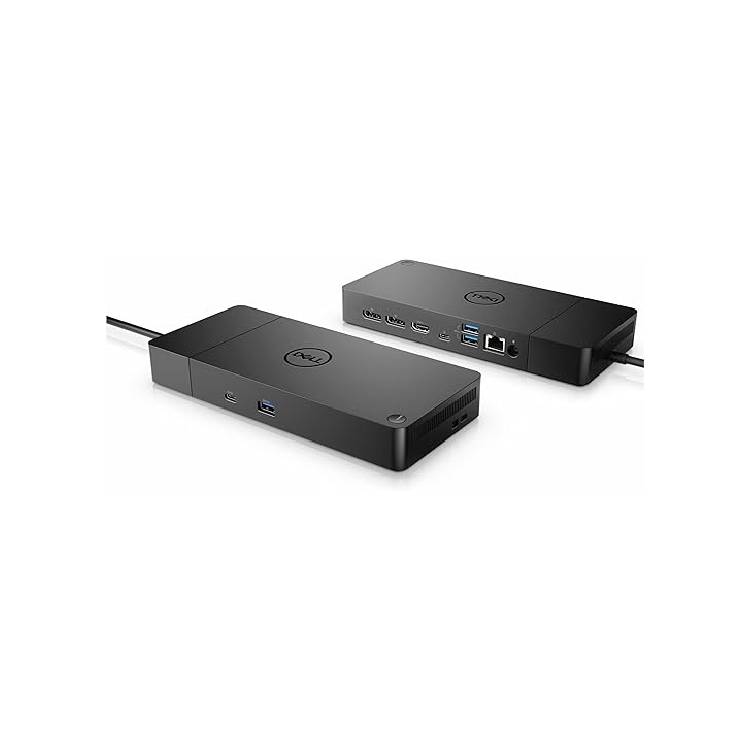

Dell WD19S 180W Docking Station

Power your connections

Power your day:

Dell ExpressCharge allows you to charge up to 80% in one hour, making it the most efficient way to manage the workday.

Energize your workload:

Get more done, even faster with Dell ExpressCharge Boost – a feature that provides up to a 35% charge in just 20 minutes.

Unmatched charging:

Increase your power delivery and charge even faster with a dock that delivers up to 90W of power with 130W power adapter.

Built for the future
Mix and match:

Evolve as your needs change with our most versatile dock. The future-ready design lets you swap out modules with ease if you need to do field replacements or upgrade your systems.

Ultimate connectivity:

USB-C connectivity makes it easier than ever to deliver power, data, audio and video in one convenient cable, no matter what system you use.

Clean and clutter-free:

Stay productive by mounting your dock behind your monitor or under your desk with the optional, secure VESA mount, that offers complete flexibility with the built-in one-meter cable.

Information in a flash:

With data transfer speeds of up to 10Gbps, you can stay productive when connected to all your devices.

Power Delivery & Adapter

Dock input: 19.5 V DC from included 180 W power brick
Power output:
- Up to 130 W to Dell laptops
- Up to 90 W to non‑Dell laptops

Display Connectivity

2 × DisplayPort 1.4 (rear)
1 × HDMI 2.0 (rear)
1 × USB-C multifunction port (supports DisplayPort 1.4 alt‑mode)
Display support:
- Up to 5K @60 Hz (single display)
- Dual 4K @60 Hz or triple QHD @60 Hz + single 720p via multi-display setups

USB & Peripheral Ports

Front panel:
- 1 × USB-C 3.2 Gen 2
- 1 × USB-C 3.2 Gen 1 with PowerShare
- 1 × USB-A 3.2 Gen 1
Rear panel:
- 2 × USB-A 3.2 Gen 1
- 1 × USB-C 3.2 Gen 2/DP alt‑mode (with DisplayPort functionality)
