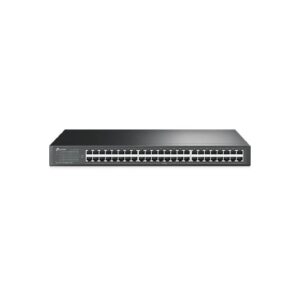

TP-Link TL-SF1048 – 48-Port 10/100Mbps Rackmount Switch

TP-Link TL-SF1048 – 48-Port 10/100Mbps Rackmount Switch

Product Does

TP-Link TL-SF1048 – 48-Port 10/100Mbps Rackmount Switch

The TL-SF1048 10/100Mbps Switch is designed to meet the needs of the most demanding workgroup and departmental connectivity requirements.

All 48 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play.

Moreover, with the innovative energy-eff cient technology, TL-SF1048 can save up to 50%* of the power consumption and 80% of the packaging material can be recycled,

making it an eco-friendly solution for your business network.

TP-LINK Green Technology

This new generation TL-SF1048 10/100Mbps Switch features the latest innovative energy-

effcient technologies that can greatly expand your network capacity with much less power.

It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

High Performance

Featuring non-blocking switching architecture，TL-SF1048 forwards and filters packets at full wire-speed for maximum throughput.

And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1048 work reliably.

Easy to Use

The auto features of this Fast Ethernet switch make installation plug and play and hassle-free.

No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables.

Auto-negotiation on each port senses the link speed of a network device (10, 100Mbps) and intelligently adjusts for compatibility and optimal performance.

Core Features

• 48 Fast Ethernet (10/100 Mbps) RJ‑45 ports with auto-negotiation and auto-MDI/MDIX—each port can act as uplink or downlink.

• Fully unmanaged and plug‑and‑play—no config needed, ideal for easy deployment .

• Fanless, steel 1U rack-mountable design, offering silent operation in 19″ racks .

• Green Ethernet technology reduces power up to 50% by adapting to link status and cable length, also using ~80% recycled packaging .

• Performance specs:

  • Backplane capacity: 9.6 Gbps (non-blocking).

  • Forwarding rate: ~7.14 Mpps.

  • MAC table: 8 K entries.

  • Max power draw: ~9.9 W under full load .

• Reliability features: Supports IEEE 802.3x flow control and backpressure to manage traffic efficiently .
