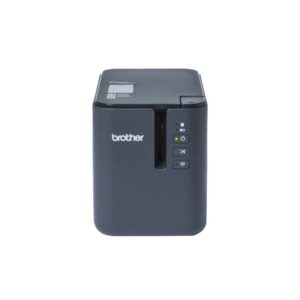

Brother PT-P950NW Professional Label Printer

Brother PT-P950NW Professional Label Printer

Main Features

Brother PT-P950NW Professional Label Printer

Wi-Fi, Ethernet, USB, Host USB, Serial & Optional Bluetooth (PA-BI-002) Interfaces Versatile Wireless and Wired Connectivity Options

Produce Premium Quality, UL Certified¹ Laminated Labels On-Demand Virtually Eliminates the Need to Purchase Pre-Printed Labels From a Converter for Custom and Short Run Labels

Infrastructure, Adhoc and Direct Wireless Wi-Fi Communications Connect Directly to a Windows Computer, iOS and Android Smartphone or Tablet

Larger Print Head Prints up to 32mm High on 36mm Wide Tape at 360 dpi Printing Resolution Prints Larger,

Easy to Read Labels with Smooth Curves that Help Eliminate Jagged and Pixilated Images, Including Very Small Characters and Graphics

Automatic Dual Blade Cutting Mechanism Pre-Print Strip of Easy to Peel labels as an Alternative to Sheets and Rolls of Die Cut Labels

Future Proof Optional Accessories:

Li-ion Rechargeable Battery (PA-BT-4000LI), Battery Base (PA-BB-002), Touch Panel & Display (PA-TDU-003) and Bluetooth v2.1 (PA-BI-002) Make Printer Configuration Purchasing Decision on Current Requirements, Optional Accessories are User Installable After Deployment

Key Specifications

• Print Technology: Thermal transfer using durable TZe laminated tapes, up to 36 mm wide, at 360 dpi resolution

• Print Speed: Fast 60 mm/sec (~2.4 in/sec)

• Dimensions & Weight: Compact desktop footprint 118 × 192 × 146 mm, weighing 1.51 kg

• Cutter: Features auto full/half cutter and easy-peel mode for clean label dispensing

• Max Print Height: Supports printing up to 32 mm near edge-to-edge on 36 mm tape

 Connectivity & Integration

• Interfaces:

  • Wired: USB 2.0, 10/100 Base‑TX Ethernet

  • Wireless: Wi‑Fi (802.11 b/g/n), Wi‑Fi Direct

  • Optional: Bluetooth v2.1 via add-on dongle, RS‑232C with serial adapter

• Control Options:

  • PC/Mac software using P‑touch Editor

  • Mobile printing via Brother iPrint&Label and Pro Label Tool

  • Optional Touch Display Unit (PA‑TDU‑003) for standalone, touchscreen-driven label printing
