Product Description

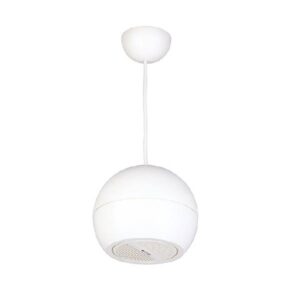

Dsppa DSP107W Pendant Speakers Sound Projector

The DSP107W is a pendant-style sound projector speaker designed for public address (PA) and background sound use,

especially in large or open spaces where hanging/mounted sound sources are useful.

It combines elegance of design with functional performance and durability.

It includes a built-in 70V/100V transformer for efficient long-distance wiring: high voltage /

low current mode supports connecting many units in parallel with less signal loss.

Its frequency response is wide (~110 Hz to 18 kHz), giving clear mid and upper frequency reproduction —

good for speech intelligibility and general ambient audio.

Highlights

• Elegant and slim design, suited for hanging installations in spaces like stations, halls, religious buildings, malls, auditoriums, etc.

• Transformer built in (70/100V) allows long distance wiring and parallel connection of multiple speakers without excessive voltage drop.

• Wide frequency response gives it ability to reproduce speech clearly and handle ambient audio content well.

• High sensitivity (91 dB) means it can deliver reasonable volume for its power class without needing huge amplifier overhead.

• The adjustable hanging mechanism means you can vary how low or high the speaker hangs depending on ceiling height or coverage needs.

• Lightweight (2 kg) and durable build help with ease of installation and longevity.

Key Data / Specs
Spec Value

• Model DSP107W
• Power 15 W rated
• Voltage options 70 V / 100 V line with built-in transformer
• Sensitivity (1W @ 1m) ~91 ± 2 dB
• Maximum SPL @ 1m ~102 ± 2 dB
• Frequency Response ~110 Hz – 18 kHz
• Weight ~2 kg
• Enclosure / Material High-quality industrial plastic, lightweight, durable, fade and deform resistant .
• Mounting style Pendant / hanging, with adjustable suspensory cable/rod

Features

● Elegant Design, 70/100V, 8-15W, with multiple terminals
● Max SPL: 102±2dB
● Built-in 100v/70v transformer
● Wide Freq.Resp.:110Hz-18kHz
● High sensitivity: 91±2dB
● Hanging style and the suspensory is adjustable
● Made of high quality industrial plastic

Additional Descriptive & Functional Notes

• The DSP107W is built to operate in “high-voltage, low-current mode” via the 70V/100V transformer,

• which allows for long-distance wiring and parallel connection of multiple speakers with minimal signal loss.

• Its wide frequency range (110 Hz to 18 kHz) gives it flexibility for reproducing speech and background audio reliably.

• The housing is designed so that it does not deform or fade over time, contributing to durability in indoor or semi-protected environments.

• The hanging style allows adjusting the length of the suspensory cable / wire, giving flexibility in installation height.

• Good damping in the driver surround for clearer sound and longer life.

• It’s suited for various environments / applications: stations, parks, schools, squares, industrial zones, etc.
