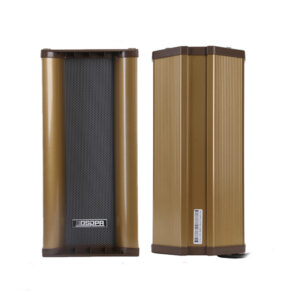

Dsppa DSP108 Outdoor Waterproof Column Speaker

Dsppa DSP108 Outdoor Waterproof Column Speaker

General Description

Dsppa DSP108 Outdoor Waterproof Column Speaker

DSP108 is an outdoor waterproof column speaker built-in 70v/100v transformer.

The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.

The built-in 4”x1, 2.5”x1 two way speaker drivers are designed of wide frequency response 140-14kHz,

the power output of 10W could meet different applications varies from room size and ambient noise surroundings.

Easy and secure wall mount through the mounting hook.

This column speaker is ideal choice for industrial and commercial applications in the indoor area of hotel, school, office,

restaurant and factory where background music and paging is needed.

Specifications & Features

From the official DSPPA site and spec sheets:

• Rated Power:

• 10 W

• Line Voltage / Transformer:

• Built-in 70V / 100V transformer, supports taps of 5W–10W (at 70V) or 10W (at 100V)

• Maximum Sound Pressure Level (SPL):

• 97 dB ±2 dB (at 1 m)

• Frequency Response:

• 140 Hz – 14 kHz

• Sensitivity:

• ~ 87 dB ±2 dB (1 W @ 1 m)

• Dimensions (L × W × H):

• 125 × 150 × 310 mm

• Weight:

• ~ 2.3 kg

• Construction / Material:

• Aluminum enclosure with corrosion-resistant aluminum mesh cover, designed for outdoor use

• Crossover:

• Dual-crossover design for better audio balance in outdoor use

Strengths & Use Cases

• Because it’s waterproof and built from aluminum, it can be used outdoors (gardens, walkways, terraces) without undue damage from weather conditions.

• The 70V/100V transformer and tap options make it well suited for distributed PA systems (where multiple speakers are wired in parallel) with minimal signal loss.

• Its compact size and modest power make it a good fit for medium outdoor spaces, not necessarily large stadiums or extremely noisy environments.

• The dual-crossover design and balanced frequency response helps maintain clarity for speech and background music in open areas.

•  Made of aluminum
• Rated power : 10W
• Max SPL: 97dB
• Wide Freq.Resp.:140Hz-14kHz
• High sensitivity: 87dB
• High sensitivity and high dynamic range.
