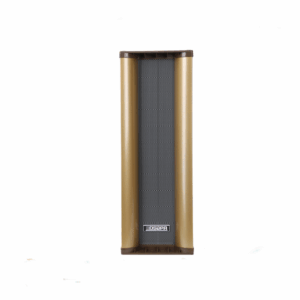

Dsppa DSP208 Outdoor Waterproof Column Speaker

Dsppa DSP208 Outdoor Waterproof Column Speaker

DSP208 is an outdoor waterproof column speaker built-in 70v/100v transformer.

The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.

The built-in 4”x2, 2.5”x1 two-way speaker drivers are designed of wide frequency response 140-14kHz,

the power output of 10W could meet different applications varies from room size and ambient noise surroundings.

Easy and secure wall mount through the mounting hook.

This column speaker is ideal choice for industrial and commercial applications in the indoor area of hotel, school,

office, restaurant and factory where background music and paging is needed.

Specifications

 Key Features & Applications

• Waterproof/Outdoor use — intended for areas exposed to weather.

• Good for background music, paging, announcements in commercial or industrial settings: schools, factories, restaurants, hotels.

• Compact size — easier installation on walls with hooks.

• Parallel connection of multiple units over 70V/100V line helps when you need multiple speakers in large or open spaces.

General Description

he DSP208 is a rugged, outdoor-weatherproof column speaker designed for both indoor and outdoor use.

It features a built-in 70V/100V transformer,

which reduces line loss over long cable runs and allows multiple speakers to be wired in parallel easily.

It has a two-way driver setup: two 4-inch drivers plus one 2.5-inch driver.

The frequency response spans approximately 140 Hz to 14 kHz,

delivering clear reproduction of speech and ambient music.

Rated power is 20W, with a maximum SPL of about 102 dB, and sensitivity around 89 dB.

These specifications suit applications like paging, announcements, or background music in hotels, schools, offices, restaurants, or factories.

The speaker’s housing is made of aluminum, offering weather resistance, durability, and mounting flexibility.

It comes with a mounting hook for secure wall installation.

Benefits & Limitations

Benefits / Strengths:

• Weather resistance:

• The aluminum body and corrosion-resistant mesh cover help it survive harsh outdoor conditions.

• Parallel wiring:

• The 70V/100V line with selectable taps makes it flexible for PA systems needing multiple speakers across wide areas.

• Balanced performance:

• Good sensitivity and sound pressure for its class, especially when placed optimally.

• Compact footprint:

• At 410 mm height, it’s relatively compact for its type and well suited for wall/column mount.
