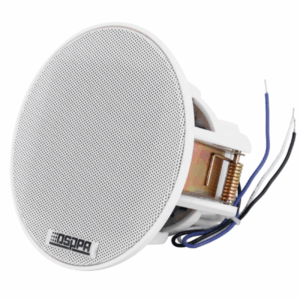

DSPPA DSP3011 3 Inch High Quality Framless Ceiling Speaker 6W

DSSPA DSP3011 3 Inch High Quality Framless Ceiling Speaker 6W

. Description

DSPPA DSP3011 3 Inch High Quality Framless Ceiling Speaker 6W

It has a built-in 70 V / 100 V transformer,

which makes it easier to install multiple speakers in parallel over long cable runs

(typical in commercial audio / PA systems).

. Features

● Suitable for public broadcasting and background music.
● Sound clear and sonorous.
● Simple and beautiful appearance, integrating itself into different indoors.
● High quality engineering plastic,

long-term durability and reliability.

• Introduction

• which makes longer distance transmission
• and  parallel connection of multiple loudspeakers possible.
• It is made of high quality engineering plastic, long-term durability

• Power Output:

• 10W RMS (with 70V / 100V transformer taps).
• • Frequency Response: 100Hz – 20kHz (approx.)
• for clear speech and background music.

• Use Cases & Limitations

• Good for:
• • Background music in commercial spaces (shops, lobbies, offices)
• • Voice announcements / paging in schools, malls, transit terminals, etc.
• • Zones where discreet / aesthetic speakers are preferred.
• • The speaker is advertised as suitable for public broadcasting and
• background music in commercial settings (e.g. offices, shops, malls).
• • Its frameless / flush design is meant to
• “blend in” more in ceiling installations, avoiding bulky visual presence.
• A cover / grille for protection (anti-dust, anti-drip) is included

Specifications & Features

From DSPPA’s official site and distributors:

• Model: DSP3011

• Driver: 3″ × 1Rated Power (RMS): 6 W

• Voltage / Power Taps:
    • 70 V line: 1.5 W / 3 W
    • 100 V line: 3 W / 6 W

• Sensitivity (1 m, 1 W):

• 88 dB ± 2 dB

• Maximum SPL (1 m):

• ~95 dB ± 2 dB

• Frequency Response

•  120 Hz – 20 kHz

• Dimensions:

• φ104 × 76 mm (i.e. outer diameter ~104 mm, depth ~76 mm)

• Net Weight:

• ~0.5 kgMounting: Spring-clip clamps for ceiling installation
