Dsppa DSP6011 6.5 Inch Frameless Ceiling Speaker
Dsppa DSP6011 6.5 Inch Frameless Ceiling Speaker
Description

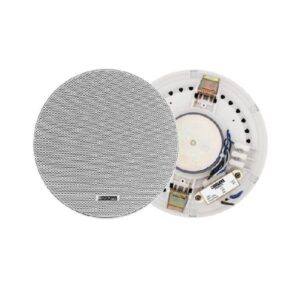

Dsppa DSP6011 6.5 Inch Frameless Ceiling Speaker
The DSP6011 is a surface mount ceiling speaker with a 70v/100v transformer built in.
The 70v/100v transmission is realized in a high-voltage, low-current mode,
which makes longer distance transmission and parallel connection of multiple loudspeakers possible.
It’s easy to install with strong clip, and made of high-quality engineering plastic, which is durable, non-deformable and non-fading.
It is an ideal choice for these places, such as schools, gymnasiums, square halls, parks, parking lots, railway stations, airports, villa communities and mall supermarkets, etc.
Features
● 6.5 inch Frameless
● Aluminum Grille
● 70/100V, Rated Power:6W
● Max. SPL:97±2dB
● Freq. Resp.:110Hz – 15kHz
● Sensitivity 90±2dB
● Cutout size:Ø165-170mm
● Three speaker line terminal, support different power
● In-ceiling quick installation by spring clip
Strengths / Good Use-Cases
-
Because it has a 70/100V transformer, it’s very useful for long cable-runs or multiple parallel speakers
-
(e.g. in a mall, store, public building). High-voltage line means less power loss over distance.
-
Frameless and aluminum grille give clean aesthetics; blends well with ceiling, minimal protrusion.
-
Spring clip installation makes it relatively easy to install in ceilings.
-
For ambient or background sound (music or announcements) in spaces like corridors, halls, shops, waiting rooms, etc., this speaker is quite suitable.
-
Durable build (engineering plastic, grille, coatings) helps for indoor spaces where durability is needed.
Specifications & Features
| Attribute | Details |
|---|---|
| Model | DSP6011 |
| Speaker Size | 6.5-inch driver unit. |
| Rated / RMS Power | 6 W |
| Voltage / Line Type | 70 V / 100 V line transformer built in; supports taps for different power levels (3 W / 6 W, depending on voltage) |
| Max SPL | 97 ±2 dB |
| Sensitivity | ~ 90 ±2 dB (some sources say ~95 ±2 dB) |
| Frequency Response | ~ 110 Hz to 15 kHz according to DSPPA spec sheet. Some seller listings claim wider, e.g. ~ 90 Hz-20 kHz. |
| Line Terminals / Taps | Three speaker line terminals to support different power levels depending on 70V or 100V lines. |
| Cut-out / Installation Hole Size | Ø165-170 mm for ceiling cut-out. |
| Overall Dimensions | Approximately 190.5 mm diameter × ~70 mm depth. Net weight ~0.6 kg. |
| Grille / Finish | Frameless design; aluminum grille; tools for quick installation via spring clips. Durable engineering plastics; non-fading & non-deforming. |
| Usage | Designed for public address / background music / distributed speaker zones; good for commercial or large space installation where many ceiling speakers may be wired in parallel via high voltage line. |
