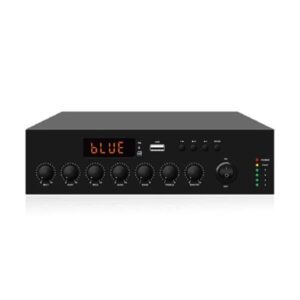

Dsppa MA60UB Mini Mixer Amplifier 60W

Dsppa MA60UB Mini Mixer Amplifier 60W

Description

Dsppa MA60UB Mini Mixer Amplifier 60W

This device is a 60W mini mixer amplifier with USB, FM and Bluetooth, which supports 100V/70Vconstantvoltage output and 4-16Ω constant resistance output.

It holds a variety of audio sources, including2microphone inputs, 2 auxiliary inputs, 1 FM input, 1 Bluetooth input, and 1 USB input.

Features

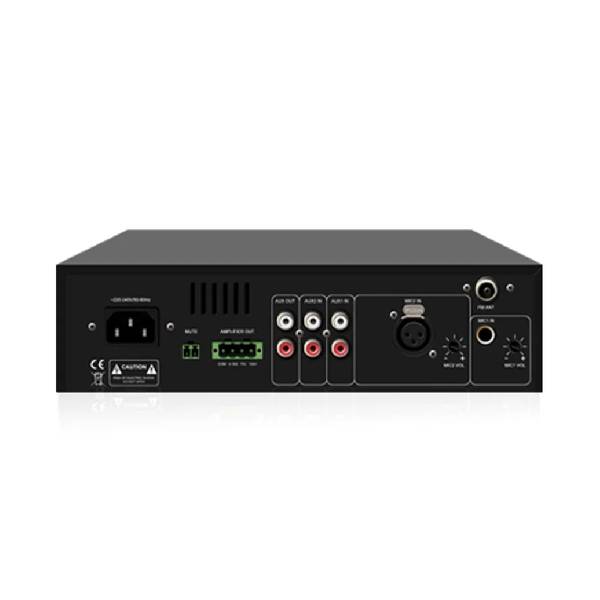

• With 2 MIC IN, 2 AUX IN, FM input, Bluetooth input, and USB input.
•  1 short circuit mute control.
•  microphone mute function for easy insertion of priority broadcasting.
•  100V/70V constant voltage output and 4-16Ω constant resistance output.

Overview & Key Specifications

The MA60UB is a compact 60-watt mixer amplifier from DSPPA, featuring:

• Inputs:

  • 2 microphone inputs

  • 2 auxiliary inputs (e.g., RCA or line level)

  • FM radio input

  • Bluetooth input

  • USB input

• Outputs:

  • Supports 70V/100V constant-voltage output for distributed speaker setups

  • Also supports 4 – 16 Ω low-impedance outpu

• Controls & Features:

  • Tone control: Treble ±9 dB, Bass ±9 dB

  • Audio processing: Distortion < 0.1% at 1 kHz, frequency response 80 Hz–15 kHz (±1 dB), signal-to-noise ratio ≥ 75 dB

  • Built-in protection: Short-circuit mute, microphone mute for priority/public address situations

• Power & Physical Specs:

  • Rated power: 60 W

  • Power supply: AC 220–240 V, 50–60 Hz .

  • Dimensions (L × W × H): 250 × 230 × 72 mm; Net Weight: 2.6 kg; Gross Weight: 3.25 kg

Specifications

• Brand: Dsppa
• Model: MA60UB
• Type: Amplifier
• Support (USB – Bluetooth – FM)
• Mic Sensitivity: 9MV

• AUX Sensitivity: 350MV
• S/N Ratio: ≥75dB
• Voltage: 100V/70V
• Impedance: 4-16Ω
• Frequency Response: 80Hz-15kHz (±1dB)
• Distortion: ＜0.1%@1KHZ
• Tone Control: Treble: ±9dB  Bass: ±9dB
• Rated Output Power: 60W
• Power Supply: AC220-240V/50-60Hz
• Power Consumption: 10W
• Material: Metal
• Color: Black
• Dimensions: 250 × 230 × 72mm
