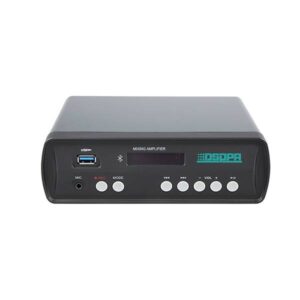

Dsppa Mini60 2x30W Mini Digital Amplifier with USB & Bluetooth

Dsppa Mini60 2x30W Mini Digital Amplifier with USB & Bluetooth

Description

Dsppa Mini60 2x30W Mini Digital Amplifier with USB & Bluetooth

MINI60 is a digital mixer amplifier, also known as public address mixer, and a small acoustic amplification system featured by simplicity and high cost performance.

This class d mixer amplifier can apply to the small-sized broadcast system, the background music in the small-sized supermarket, and public address in the classroom.

The digital mixer system consists of the latest high-performance ARM core master control and high-efficiency energy-saving digital power amplifier circuit.

This product’s name for short can be called Bluetooth mixer amplifier or digital mixer amplifier.

Key Features

• Output Power: 2 × 30 W stereo (for 4-Ω to 16-Ω speakers).

• Amplifier Type: Class-D stereo digital amplifier.

• Power Supply: Supports DC 12-24 V input.

• Max Power Consumption: ~ 90 W.

Inputs / Sources:

•  Bluetooth (wireless)

• USB / SD card for media playback (MP3 etc.)

•  Microphone input, with MIC priority / muting.

• Recording Function: You can record via AUX or MIC inputs into USB/SD in MP3.

Display & Controls:

• LED / digital display showing mode / status.

• Digital volume control.

• Remote control included.

• Casing & Build: Aluminum alloy, compact & durable casing. Designed for portability.

• Protection & Reliability: Protection circuits for overheating, overload, short circuits.

Sound Specs:

•   Distortion < 1 % (when driving 10 W × 2 with 4 Ω load).

•  Frequency response:

•  AUX/Line: ~ 20 Hz to ~ 22 kHz ±3 dB.

•  MIC input: higher low‐cut / less low end, e.g. 100 Hz to ~16 kHz.

• Signal-to-Noise Ratio (SNR):

• AUX / line input

• For MIC input: ~ 73 dB.

•  For AUX input: ~ 55 dB.

Sizes & Weight:

•  Dimensions: ~ 180 × 145 × 60 mm.

• Net weight: ~ 0.8 kg without adapter.
