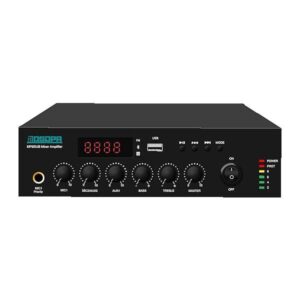

Dsppa MP60UB 60W Mini Digital Mixer Amplifier with USB & Bluetooth

Dsppa MP60UB 60W Mini Digital Mixer Amplifier with USB & Bluetooth

Description

MP60UB is 1.5U designed Mini Digital amplifier with USB/FM and Bluetooth.

The Speaker output is 70V/100V and 4-16Ω available, 2 Aux input, Min1 is 6.3mm jack in front panel and Mic2 is XLR in rear panel, Phantom power available for Mic2.

Individual volume control for each Mic and Aux, also provide Bass and Treble control. what’s more, it also has EMC signal input for emergency situation.

Key Specifications & Features

Based on official DSPPA documentation and product listings:

• Audio Sources:

• Built-in Bluetooth, FM radio, and USB MP3 player with control via infrared remote.

• Inputs & Outputs:

  • Microphones: 2 inputs — MIC1 (6.3 mm jack, front), MIC2 (XLR, rear) with phantom power support

  • Line Inputs: 2 AUX inputs

  • Line Output: 1 RCA line output

  • Emergency Inputs/Output: 2 EMC inputs (100V/375 mV) and 1 EMC output with priority logic

• Output Options:
  Supports both constant-voltage outputs (70 V / 100 V) and low-impedance stabilization (4–16 Ω)

• Control & Audio Adjustments:

  • Individual volume controls for MICs, AUX, MP3/FM, along with bass, treble, and master volume knobs

  • Priority hierarchy: EMC > MIC1 > (AUX1, AUX2, MIC2)

  • LED indicators for power, clipping, protection, and signal status

  • Remote control accessibility via IR

• Performance Metrics:

  • Rated Output Power: 60 W

  • MIC Input Sensitivity: ~7 mV ±1 mV

  • AUX Input Sensitivity: ~300 mV ±10%

  • Frequency Response:

    • MIC: ~100 Hz–8 kHz (±3 dB)

    • AUX: ~80 Hz–15 kHz (±3 dB)

  • Noise Level: ≤ 6 mV (4 Ω load)

  • Total Harmonic Distortion (THD): < 1% @ 1 kHz

• Protection Features:

• Includes safeguards for short-circuit, clipping, overload, and high-temperature conditions

• Power Supply & Backup:

  • Operates on AC 110–240 V

  • Supports optional DC 24 V backup input (at reduced power output)

• Physical Dimensions & Weight:

  • Chassis Size: 1.5U form factor — 198 × 247 × 66 mm (D × W × H)

  • Net Weight: ~2.6 kg; Gross Weight: ~3.25 kg
