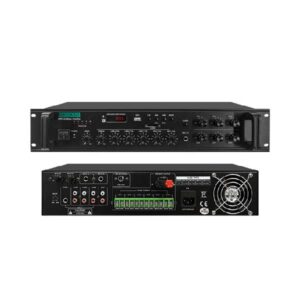

Dsppa MP610U 250W 6 Zones Paging Amplifier with USB/ SD/ FM/ Bluetooth

Dsppa MP610U 250W 6 Zones Paging Amplifier with USB/ SD/ FM/ Bluetooth

Description

Dsppa MP610U 250W 6 Zones Paging Amplifier with USB/ SD/ FM/ Bluetooth

This mixing amplifier is rated at 250W and 4-16 Ω speaker output are provided.

There are 4 unbalanced microphones inputs and 3 aux inputs. Bass and treble controls are provided.

This amplifier can be applied to different occasions, such as supermarket, classroom, etc.

Extensive protection from short-circuit, overload and high temp is ensured.

Automatic cooling system ensures the extreme quiet sound system.  It’s also called pa mixer amp for short.

Key Features & Capabilities

• Integrated Playback & Zoning

• Combines MP3 playback (via USB/SD), FM tuner, Bluetooth streaming, and a 6-zone paging system with built-in chime functionality.

• Infrared remote control enables switching modes, controlling playback, adjusting volume, EQ, and source selection. LED display provides feedback on volume, program, and status.

• Inputs & Outputs

  • Microphones:

  • 4 unbalanced mic inputs (Mic 1 has priority and mute override)

  • Auxiliary:

  • 3 AUX line inputs and 1 AUX output for cascading to additional amplifiers

  • Speaker Outputs:

  • Supports both 100 V constant-voltage and 4–16 Ω low-impedance outputs

• Zone Management
  Each of the 6 zones features individual volume control and a 5-LED level indicator. A chime button adds priority announcements.



• Audio Adjustments & Control
  Master volume, bass, and treble adjustments are available,

• along with individual control per input.



• Protection & Cooling
  Includes protection against short-circuit, overload, and DC faults, plus an automatic cooling system for silent operation.

Use Cases & Ideal Applications

The MP610U is engineered for multi-zone audio systems in settings such as:

• Commercial and Educational:

• Schools, supermarkets, offices, and retail environments requiring background music and paging capabilities.

• Multi-Zone Paging:

• Address different zones independently, ideal for tailored announcements or music distribution.

• Priority Announcements:

• Mic 1 override and chime functionality ensure urgent messages are heard above ceiling.

• Compact, Decent-Size Racks:

• Its 1.5U rack footprint (88 mm height) fits cleanly into standard AV racks.

In Summary

The DSPPA MP610U stands out as a powerful,

feature-rich 250 W amplifying solution for any environment needing robust multi-zone and paging capabilities.

Its flexibility, ease-of-use with remote control, and reliable protection make it a dependable choice for medium to large installations.

Key Features

Advanced Integration: Equipped with an MP3 player,

FM radio,

USB and SD ports,

and Bluetooth,

plus a 6-zone splitter with a chime function for priority alerts.

Remote Control: Equipped with an IR remote for full control of sources, playback, repeat, equalizer, USB/SD switching, and more,

with an LED display for playback status and volume.

Various Audio Inputs/Outputs:

4 microphone inputs (priority on the first microphone with mute function for other devices).

3 AUX inputs and an AUX output available for connecting additional player chains.

Audio Output:

Supports 100 V output and 4–16 Ω speaker technology.

Sound Controls:

Adjustable treble and bass, plus individual volume for each zone and a master volume.

Reliability and Protection:

Protection against short circuits, overloads, and overheating.

It also features a silent automatic cooling system.

LED Indicators:

Each display zone has a five-unit LED indicator to monitor the audio level,

with an alert function if the audio reaches distortion.
