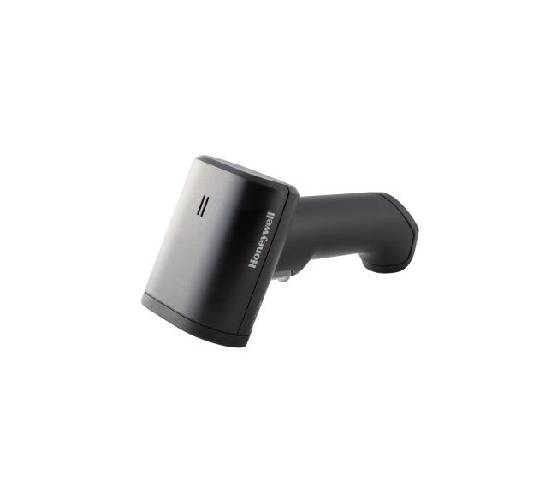

Honeywell HH492 Wireless Scanner

HH492 Wireless Scanner

The Honeywell HH492 Wireless Scanner is designed for business environments that require a fast 1D /2D scanning solution with industrial-grade durability.

The HH492 Series provides best-in-class scanning capabilities on traditional barcodes. Digital screens and barcodes are damaged or difficult to read.

Highlights

Scans accurately and quickly, even if it is a damaged or difficult to read barcode.
It is flexible and can be used in many formats, which corresponds to the needs of various customers.
Bluetooth range up to 30 meters longer than competing models on the market
USB data sync and complete accessories meet different usage situations and facilitate use.

Specifications

DIMENSIONS

• Overall Dimensions

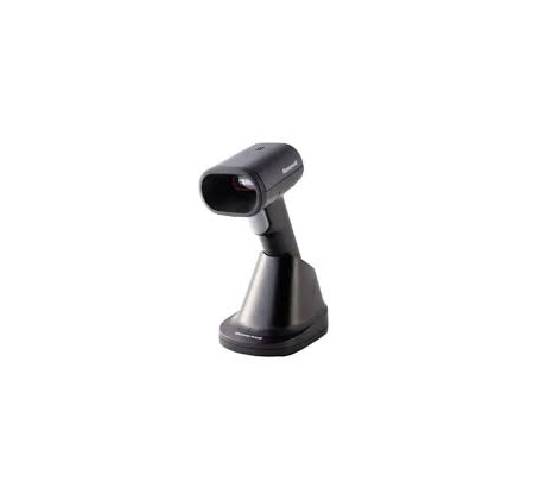

  • Charger/Communication Base: 130 mm x 86 mm x 85 mm (5.1 in x 3.4 in x 3.3 in)
  • Dimensions (L x W x H): 64 mm x 166 mm x 84 mm (2.5 in x 6.5 in x 3.3 in

SCANNING SPECIFICATIONS

• Number of Scans
  • Up to 50,000 scans per charge
• Scan Pattern
  • Area Imager CMOS (1040 x 720 pixel array)
• Motion Tolerance
  • 25cm/s (9.8in/s) for 13 mil UPC at optimal focus
• Decode Capability
  • 1D
  • 2D
  • DotCode
  • PDF

• Scanning Range

  • Max: 400mm for 13 mil UPC
  • Min: 5mm for 20 mil QR
• Depth of Field
  • Up to 400mm for 13 mil UPC

NETWORK

• Bluetooth Specifications
  • 5.0
• Bluetooth
  • Yes

HARDWARE

• Wireless
  • Yes
• Engine Type
  • Area Imager Scanning
• Host System Interface
  • HID
  • USB
• Aimer Type
  • Area Imager

ELECTRICAL

• Battery Types
  • Li-Ion

ENVIRONMENTAL

• Storage Temperature Range
  • Scanner/Communication Base: -40°C to 60°C (-40°F to 140°F)
• Operating Humidity
  • 0% to 95% relative humidity

STANDARDS & APPROVALS

• Drop Specifications
  • Communication Base: 1.0m (3.3ft) concrete floor
  • Scanner: 1.5m (4.9ft) concrete floor
• Protection Ratings
  • IP40
