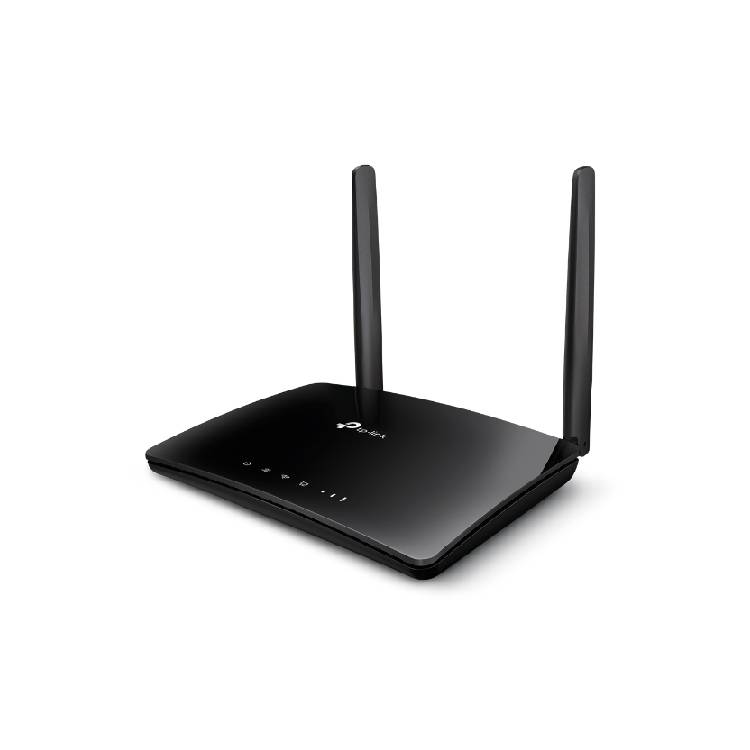

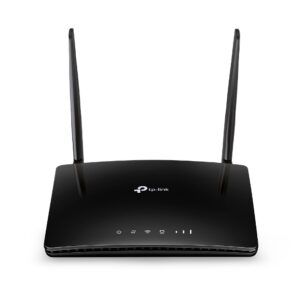

TP-Link Archer MR200 AC750 Wireless Dual Band 4G LTE Router

TP-Link Archer MR200 AC750 Wireless Dual Band 4G LTE Router

Share Your 4G LTE Network

TP-Link Archer MR200 AC750 Wireless Dual Band 4G LTE Router

Take full advantage of your cutting-edge 4G LTE network with the Archer MR200, which allows you to share network with multiple devices so you can enjoy uninterrupted HD movies,

rapid file downloads that won’t freeze up.

It is also fully compatible with FDD-LTE and TDD-LTE, which are supported by most operators around the world.

Got SIM Card?
Then Plug and Play!

With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do insert a SIM card and turn on the Archer MR200.

Enjoying fast, stable Wi-Fi on a 4G LTE network has never been easier.

Internet Access for up to 64 Devices Simultaneously

The Archer MR200 can easily share a 3G/4G connection with up to 64 wireless devices like tablets, laptops and mobile phones at the same time.

It can also provide internet access for desktop computers via the LAN ports.

Wi-Fi Where You Need It

The Archer MR200 offers unmatched convenience and versatility. The ability to quickly establish powerful wireless networks can be tremendously important.

The Archer MR200 is the perfect solution whether you’re at home or working in a remote location. Just plug it in to boost on-site productivity and stay connected in a diverse range of environments.

From the exhibition center to the RV, the Archer MR200 has you covered.

Hardware & Networking

• Cellular Connectivity:

  • 4G LTE Cat 4 supporting FDD-LTE bands B1/B3/B7/B8/B20 and TDD-LTE bands B38/B39/B40/B41 — download up to 150 Mbps, upload up to ~50 Mbps

  • 3G (DC-HSPA+/UMTS) coverage on 900/2100 MHz

  • Micro SIM slot, plug-and-play setup

• Ethernet Ports:

  • 3 × 10/100 Mbps LAN

  • 1 × 10/100 Mbps LAN/WAN (for wired internet fallback)

• Buttons & Switches: WPS/Reset, Wi‑Fi on/off, Power on/off

• Power Supply: 12 V ⎓ 1 A adapter

• Dimensions: ~202 × 145 × 34 mm (~7.9″ × 5.7″ × 1.3″)

• Antennas:

  • Versions V1/V2/V4 come with 2 detachable external LTE antennas

  • Version V3 uses 2 internal LTE antennas

 Wireless (Wi‑Fi)

• Dual-Band Wi‑Fi:

  • 2.4 GHz (802.11b/g/n): up to 300 Mbps

  • 5 GHz (802.11a/n/ac): up to 433 Mbps

  • Signal Sensitivity:

  • 5 GHz: 54 Mbps @ –74 dBm; HT80 @ –60 dBm

  • 2.4 GHz: 54 Mbps @ –76 dBm; HT40 @ –67 dBm

• Transmit Power: < 20 dBm (2.4 GHz), < 23 dBm (5 GHz)

• Features: WMM, radio on/off, WDS bridging, wireless statistics, disconnect guest networks
