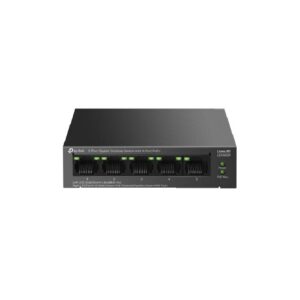

TP-Link LS105GP 5-Port Gigabit Desktop Switch with 4-Port PoE+

TP-Link LS105GP 5-Port Gigabit Desktop Switch with 4-Port PoE+

Full Gigabit Ports:

TP-Link LS105GP 5-Port Gigabit Desktop Switch with 4-Port PoE+

Five gigabit augo-negotiation ports provide up to 10 Gbps switching capacity.

65 W PoE Budget:

Four gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable.

Up to 30 W PoE output is supported by each PoE port.

Up to 250 m PoE Transmission:

With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.

PoE Auto Recovery:

Automatically reboots your dropped or unresponsive PoE-powered devices.

Plug and Play:

Simply plug and play for instant connectivity with no configuration required.

Silent Operation:

Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.

Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

Specification Details

• Ports 5 × Gigabit RJ45 (ports 1–4 PoE+/802.3af/at, port 5 data‑only)
• PoE Budget Total 65 W (up to 30 W per PoE port)
• Switching Capacity 10 Gbps total; forwarding ~7.44 Mpps
• Extend Mode Ports 1–2 support up to 250 m at 10 Mbps
• Auto Recovery Reboots unresponsive PoE devices via a physical button
• Advanced Traffic Handling IGMP Snooping, 802.1p/DSCP QoS, 802.3x flow control
• Build Fanless, silent, metal casing; desktop/ wall‑mountable; plug-and-play
• Power Supply External adapter: 53.5 V DC, 1.31 A; idle ~4 W, full load ~74 W power draw
