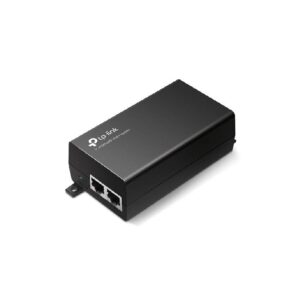

TP-Link TL-POE160S PoE+ Injector

TP-Link TL-POE160S PoE+ Injector

PoE+ Injector

TP-Link TL-POE160S PoE+ Injector

2 Gigabit ports ensure faster transmission

Complies with IEEE802.3af/at standards, supplies up to 30 W

Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable

Automatically determines and supplies the exact power to meet the device’s need

Wall-mounting and desktop design accommodates most installation scenarios

Plug & Play installation, requires no configuration

Integrated power supply

This Product Does

The PoE+ Injector TL-POE160S fully complies with IEEE 802.3af/at standards,

and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Receiver Adapters,

such as TP-Link’s TL-POE10R, or other equivalent product,

to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

Converts a standard non-PoE Ethernet port into a PoE+ output,

delivering up to 30 W (802.3at) or backwards-compatible 15.4 W (802.3af)—no need to replace your existing switch

Features

Gigabit-speed passthrough (10/100/1000 Mbps), so network performance remains high .

Perfect for powering devices like access points, IP cameras, VoIP phones—expanding your network without extra outlets

Connects to 802.3 at/af PoE Devices

TL-PoE160S converts a non-PoE gigabit port to a PoE gigabit port and supplies power and data via a single ethernet cable.

Works with PoE Splitter

Works with a PoE splitter to expand your network to areas with no power lines or outlets.

Key Specs

Specification

• Ports 1× Gigabit input, 1× Gigabit PoE+ output, 1× AC power inlet
• Standards 802.3i/u/ab, 802.3af/at compliant
• Max Power Output 30 W PoE+
• Distance Standard Ethernet length: up to 100 m
• Power Input 100–240 VAC, 50/60 Hz
• Dimensions ~125×59×37 mm (4.9″×2.3″×1.4″)
• Mounting Options Wall or desk mountable
