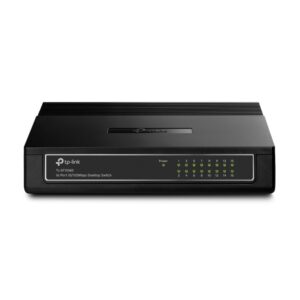

TP-Link TL-SF1016D 16-Port 10/100Mbps Desktop Switch

TP-Link TL-SF1016D 16-Port 10/100Mbps Desktop Switch

Product Does

TP-Link TL-SF1016D 16-Port 10/100Mbps Desktop Switch

The TL-SF1016D Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users.

All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover,

with the innovative energy-efficient technology,

the TL-SF1016D can save the power consumption and most of the packaging material can be recycled,

making it an eco-friendly solution for your business network.

High Performance

TL-SF1016D Fast Ethernet Switch provides 16 10/100Mbps Auto-Negotiation RJ45 ports.

All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports.

And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1016D work reliably.

TP-LINK Green Technology

This new generation TL-SF1016D Fast Ethernet Switch features the latest innovative energy-

efficient technologies that can greatly expand your network capacity with much less power.

It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, most of the packaging material can be recycled.

Easy to Use

The auto features of this switch make installation plug and play and hassle-free.

No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables.

Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps)

and intelligently adjusts for compatibility and optimal performance.

Core Features & Design

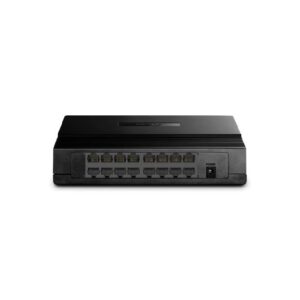

• 16 RJ‑45 ports supporting 10/100 Mbps with Auto‑Negotiation and Auto‑MDI/MDIX—no need for crossover cables

• Unmanaged, plug-and-play setup; ideal for SOHO environments

• Fanless and near‑silent, in a plastic desktop/optional wall‑mount case

 Performance & Specs

• 3.2 Gbps backplane capacity, non-blocking architecture, forwarding up to ~148,800 pps per port for 100 Mbps

• MAC address table ranges from 1 K to 2 K entries (variant dependent)

• Supports IEEE 802.3x flow control (full duplex) and backpressure (half duplex) for efficiency

Energy & Eco Features

• Implements TP‑Link Green Ethernet,

• reducing power usage based on link activity and cable length, potentially saving up to 80% energy

• Very low power draw (~3.2 W) producing minimal heat (~11 BTU/h)

Pros & Applications

•  High port density—connects many devices like IP phones, cameras, or PCs

•  Silent and energy-efficient—great for deskside setups

• Easy deployment—just plug in and network grows
