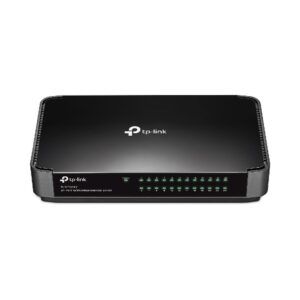

TP-Link TL-SF1024M 24-Port 10/100Mbps Desktop Switch

TP-Link TL-SF1024M 24-Port 10/100Mbps Desktop Switch

What This Product Does

TP-Link TL-SF1024M 24-Port 10/100Mbps Desktop Switch

The TL-SF1024M Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users.

All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology,

the TL-SF1024M can save power consumption, making it an eco-friendly solution for your business network.

High Performance

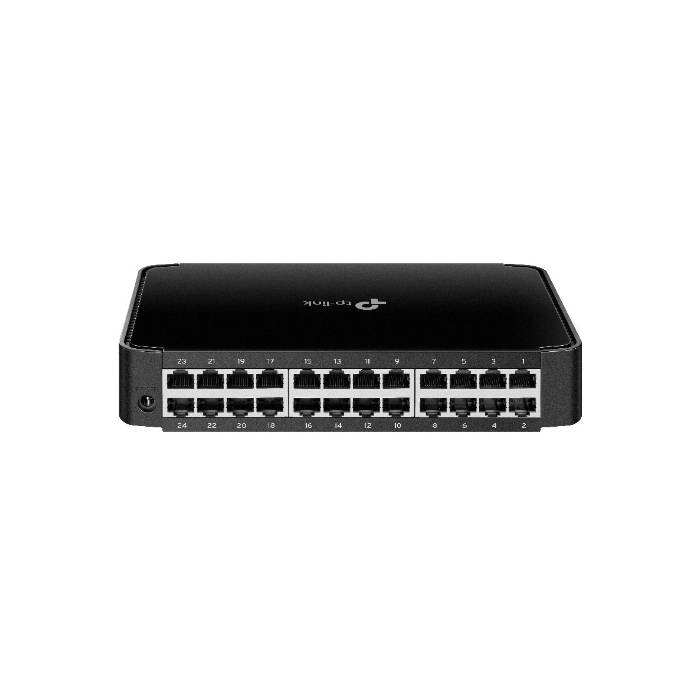

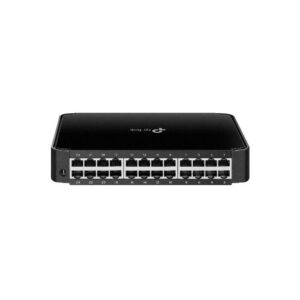

TL-SF1024M Fast Ethernet Switch provides 24 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function,

eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture,

TL-SF1024M forwards and filters packets at full wire-speed for maximum throughput.

And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1024M work reliably.

TP-LINK Green Technology

This new generation TL-SF1024M Fast Ethernet Switch features the latest innovative energy-

efficient technologies that can greatly expand your network capacity with much less power.

It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials.

Easy to Use

The auto features of this switch make installation plug and play and hassle-free. No configuration is required.

Auto MDI/MDIX eliminates the need for crossover cables.

Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.

Core Features & Build

• 24× 10/100 Mbps RJ45 ports, featuring auto‑negotiation and Auto‑MDI/MDIX—no crossover cables or uplink ports needed

• Unmanaged, plug‑and‑play, ideal for SOHO or workgroup setups

• Energy‑efficient Green Ethernet technology automatically reduces power usage—up to 67% savings

• Comes in a plastic desktop/wall‑mount case, fanless and near‑silent

 Performance & Specs

• Non‑blocking switching with 4.8 Gbps backplane and about 3.57 Mpps forwarding rate

• MAC table: 8 K entries; supports IEEE 802.3x flow control for full‑duplex and backpressure for half‑duplex

• Power consumption is very low (~3.36–3.68 W), with heat dissipation around 11 BTU/h

• Dimensions: 222 × 126 × 45 mm (approx. 8.7″×5″×1.8″)
