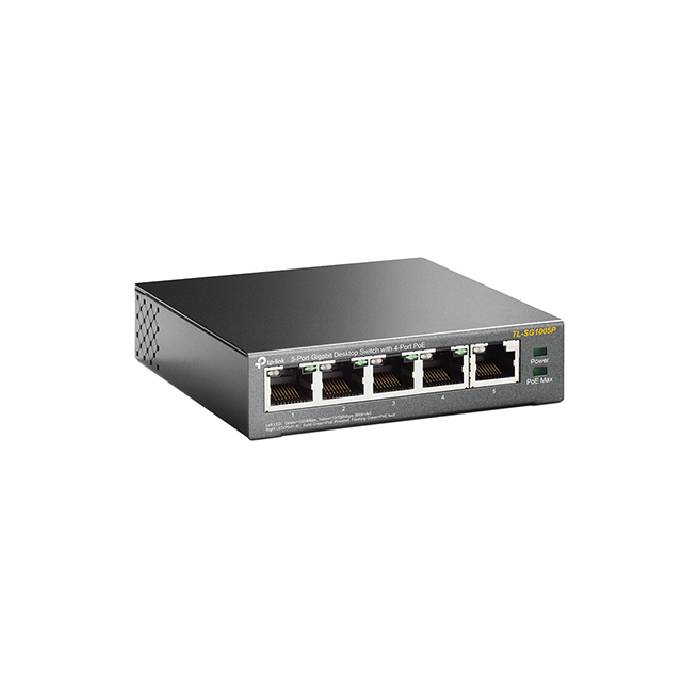

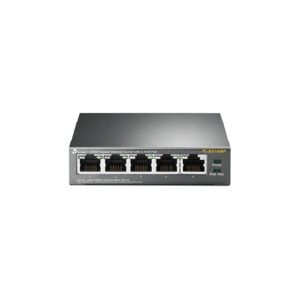

TP-Link TL-SG1005P 5-Port Gigabit Desktop with 4-Port PoE

Switch

TP-Link TL-SG1005P 5-Port Gigabit Desktop with 4-Port PoE Switch

Surveillance

TP-Link TL-SG1005P 5-Port Gigabit Desktop with 4-Port PoE Switch  Work with IP Cameras

Conference Call

Work with IP Phones

Wi-Fi Coverage

Work with Omada EAPs

Power over Ethernet

4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function.

These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

Intelligent Power Management

When total power consumption excels 56W,

the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

Sturdy Metal Casing

Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment.

Besides, fanless design ensures quiet operation.

Core Features & Specs

• 5× Gigabit (10/100/1000 Mbps) RJ‑45 ports, with 4 PoE+ ports (ports 1–4)

• fully compliant with IEEE 802.3af/at—supporting up to 30 W per port, with a total PoE budget of 65 W

• Unmanaged, plug-and-play with auto-negotiation and auto-MDI/MDIX.

• Advanced features: 802.1p/DSCP QoS, IGMP Snooping, IEEE 802.3x flow control for optimal traffic handling

• Rugged metal fanless casing, desktop or wall-mountable, designed for quiet operation

• High switching capacity (10 Gbps) with a forwarding rate around 7.44 Mpps
