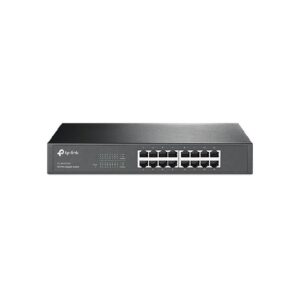

TP-Link TL-SG1016D 16-Port Gigabit Desktop/Rackmount Switch

TP-Link TL-SG1016D 16-Port Gigabit Desktop/Rackmount Switch

What This Product Does

The TL-SG1016D Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network.

All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play.

Moreover, with the innovative energy-efficient technology, the TL-SG1016D can save power consumption, making it an eco-friendly solution for your business network.

TP-LINK Green Technology

This new generation TL-SG1016D Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power.

It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network.

It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, most packaging material can be recycled.

High Performance

All 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices.

Featuring non-blocking switching architecture, TL-SG1016D forwards and filters packets at full wire-speed for maximum throughput.

With 10KB Jumbo frame, the performance of large files transfers is improved significantly.

And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the tra­ffic congestion and make The TL-SG1016D work reliably.

It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.

Easy to Use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables.

Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

Traffic Separation

Isolation Mode easily divides traffic for specific ports with one click to avoid snooping, tampering and isolation broadcast storm for higher security.

Key Features

• 16 × Gigabit RJ45 ports (10/100/1000 Mbps) with auto MDI/MDIX and auto-negotiation — plug-and-play setup

• 32 Gbps non-blocking switching capacity, approx. 23.8 Mpps forwarding rate — ensures maximum throughput

• Support for 10 KB jumbo frames and IEEE 802.3x flow control enhances large file transfers and traffic efficiency

• Fanless, all-metal chassis, ultra-quiet operation, ideal for desktops or racks

• Energy-saving “Green” tech adjusts power usage based on cable length/link status — RoHS compliance
