PA-503W 3,800 Lumens WXGA Business Projector

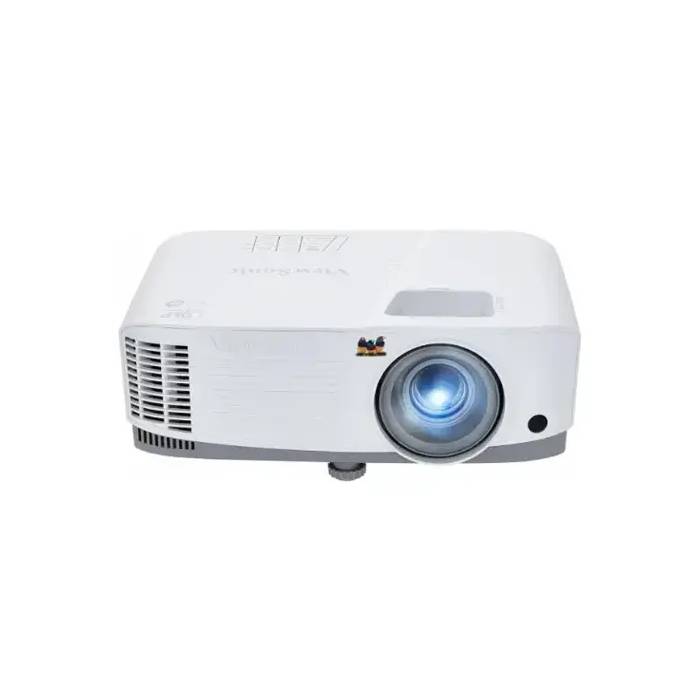

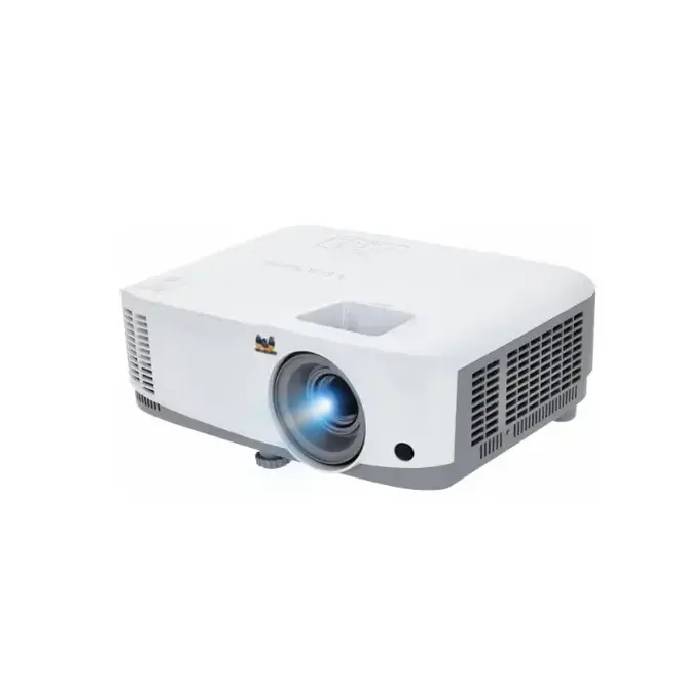

ViewSonic PA503W 3,800 Lumens WXGA Business Projector  is a versatile WXGA (1280×800) DLP projector designed for small business meeting rooms, classrooms, and home entertainment setups.

It delivers bright, vibrant visuals and offers user-friendly features at an affordable price point.​

Extended Lifespan:

Users have the option to select different lamp modes in order to prolong the lifespan of the lamp. If the Power Saving setting is enabled and there is no input signal, the projector will automatically switch to Eco Mode or SuperEco Mode.

In Eco Mode, the projector will switch from Normal Mode to Eco Mode after 5 minutes of idle time.

In SuperEco Mode, if the projector does not receive any input signal for 20 minutes, the projected images will be dimmed to 70%, effectively extending the average lamp lifespan to 15,000 hours.

Key Specifications

• Brightness: Up to 4,000 ANSI lumens, ensuring clear images even in well-lit environments.​

• Resolution: Native WXGA (1280×800) with a 16:10 aspect ratio.​

• Contrast Ratio: 22,000:1 for enhanced image depth and detail.​

• Display Technology: DLP with a 6-segment color wheel and 10-bit color processing.​

• Lamp Life: Up to 15,000 hours in SuperEco mode, reducing maintenance needs.​

• Throw Ratio: 1.55–1.70:1, supporting image sizes from 30″ to 300″.​

• Keystone Correction: Vertical ±40° for flexible installation.​

• Speaker: Built-in 2W mono speaker for basic audio needs.​

• Weight: Approximately 4.9 lbs (2.2 kg), making it portable.

Visual Performance​

• SuperColor™ Technology: Offers a wide color range for lifelike images in various lighting conditions.

• Preset Viewing Modes: Includes Brightest, Presentation, Standard, Photo, and Movie modes to optimize image quality based on content and environment.​

• 3D Compatibility: Supports 3D content via HDMI from compatible devices.​

Connectivity Options

• Inputs:

  • HDMI 1.4 for high-definition video and audio.​

  • 2 x VGA inputs for analog video sources.​

  • Composite Video input for legacy devices.​

  • Audio In (3.5mm) for external audio sources.​

• Outputs:

  • VGA output for monitor loop-through.​

  • Audio Out (3.5mm) for external speakers.​

• Control:

  • RS-232 port for integration with control systems.​

  • USB Type-A for service and firmware updates.​

 User-Friendly Features

• Instant Activation:

  • Direct Power On: Powers on automatically when connected to power.​

  • Signal Power On: Powers on upon detecting a VGA signal.​

• Energy-Saving Modes:

  • Eco Mode: Activates after 5 minutes of inactivity.​

  • SuperEco Mode: Dims projection brightness by up to 70% after 20 minutes without input, extending lamp life.​

• Sleep Timer: Automatically turns off the projector after a set period of inactivity.​

• Remote Control: Includes a remote with multiple control codes, allowing operation of up to 8 projectors in the same venue
